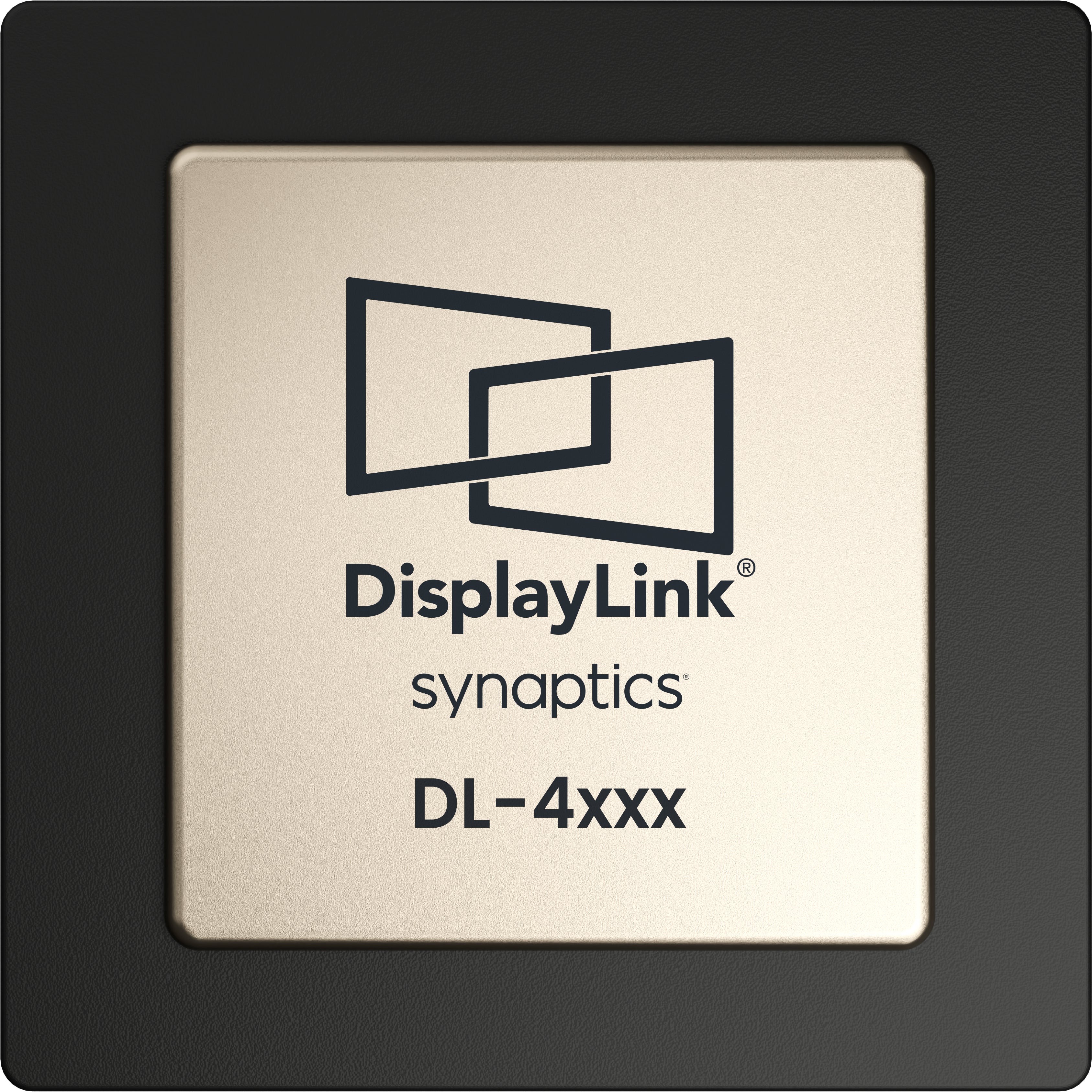

DisplayLink DL-4xxx Series
Product Family Overview
The DisplayLink DL-4xxx family, trusted by Lenovo, HP, ASUS, Logitech, Wacom, Yealink, Poly, Elgato, AOC, Mimo, and many others, has been utilized in products worldwide across enterprise, conferencing, industrial, embedded, and retail segments. Designed specifically for integrated display applications, the DL-41xx family delivers a versatile solution for a wide range of panel-based products.
Supporting resolutions up to 1920 × 1200, with integrated LVDS and support for eDP, the DL-41xx family requires no external memory, helping reduce bill-of-materials costs. It is ideal for customer-facing point-of-sale displays, portable monitors, meeting room controllers, signature pads, embedded panels, and external robotic displays. HDCP, DDC/CI, and USB 3.0 support are included as standard.
Contact Synaptics Sales for further details.
Features
| Feature / IC | Earlier DL-1x5 IC | DL-4110 | DL-4115 | DL-4120 |
|---|---|---|---|---|
| Applications | - |
|
|
|
| Video Outputs | 1 | 1 | 1 | 1 |
| Maximum Resolution | QWXGA | WXGA | SXGA+ | WUXGA |
| Ingress | USB2 | USB3 5Gbps | USB3 5Gbps | USB3 5Gbps |
| Memory |
| Integrated | Integrated | Integrated |
| LVDS | Integrated | Integrated | Integrated | Integrated |
| eDP | - | Supported | Supported | Supported |
| Digital RGB | Integrated | - | - | - |
| Codec | DL2 | DL3 | DL3 | DL3 |
| HDCP | - | Integrated | Integrated | Integrated |
| DDC/CI | Limited | Supported | Supported | Supported |
| DisplayLink Direct | - | Supported | Supported | Supported |
Certification
DisplayLink certified not only signifies that the product is enabled by one of our many award-winning chipsets, it also highlights that the design has been scrutinized and meets the stringent design needs to carry our certified brand mark. Buying products that carry the brand equally signifies to end users a level of uncompromisable compatibility, allowing products from multiple vendors to work seamlessly together. Building confidence, ensuring usability, enabling freedom of choice, plus our unequaled extensibility.
Products
| Product P/N | Application | Input | Video Outputs | Integrated Features | Support | Max Resolution | Ethernet | Audio |
|---|---|---|---|---|---|---|---|---|
| DL-4120 | Controller Scheduler | USB35Gbps | 1 | LVDS DDR-less | eDP | 1x 1200p | n/a | n/a |
| DL-4115 | Controller Scheduler | USB35Gbps | 1 | LVDS DDR-less | eDP | 1x 900p | n/a | n/a |
| DL-4110 | Controller Scheduler | USB35Gbps | 1 | LVDS DDR-less | eDP | 1x 720p | n/a | n/a |
| Product P/N | Application | Input | Video Outputs | Integrated Features | Support | Max Resolution | Ethernet | Audio |
|---|---|---|---|---|---|---|---|---|
| DL-4120 | Customer Display | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 1200p | n/a | n/a |
| DL-4115 | Customer Display | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 900p | n/a | n/a |
| DL-4110 | Customer Display | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 720p | n/a | n/a |
| Product P/N | Application | Input | Video Outputs | Integrated Features | Support | Max Resolution | Ethernet | Audio |
|---|---|---|---|---|---|---|---|---|
| DL-4120 | Portable Monitor | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 1200p | n/a | n/a |
| DL-4115 | Portable Monitor | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 900p | n/a | n/a |
| DL-4110 | Portable Monitor | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 720p | n/a | n/a |

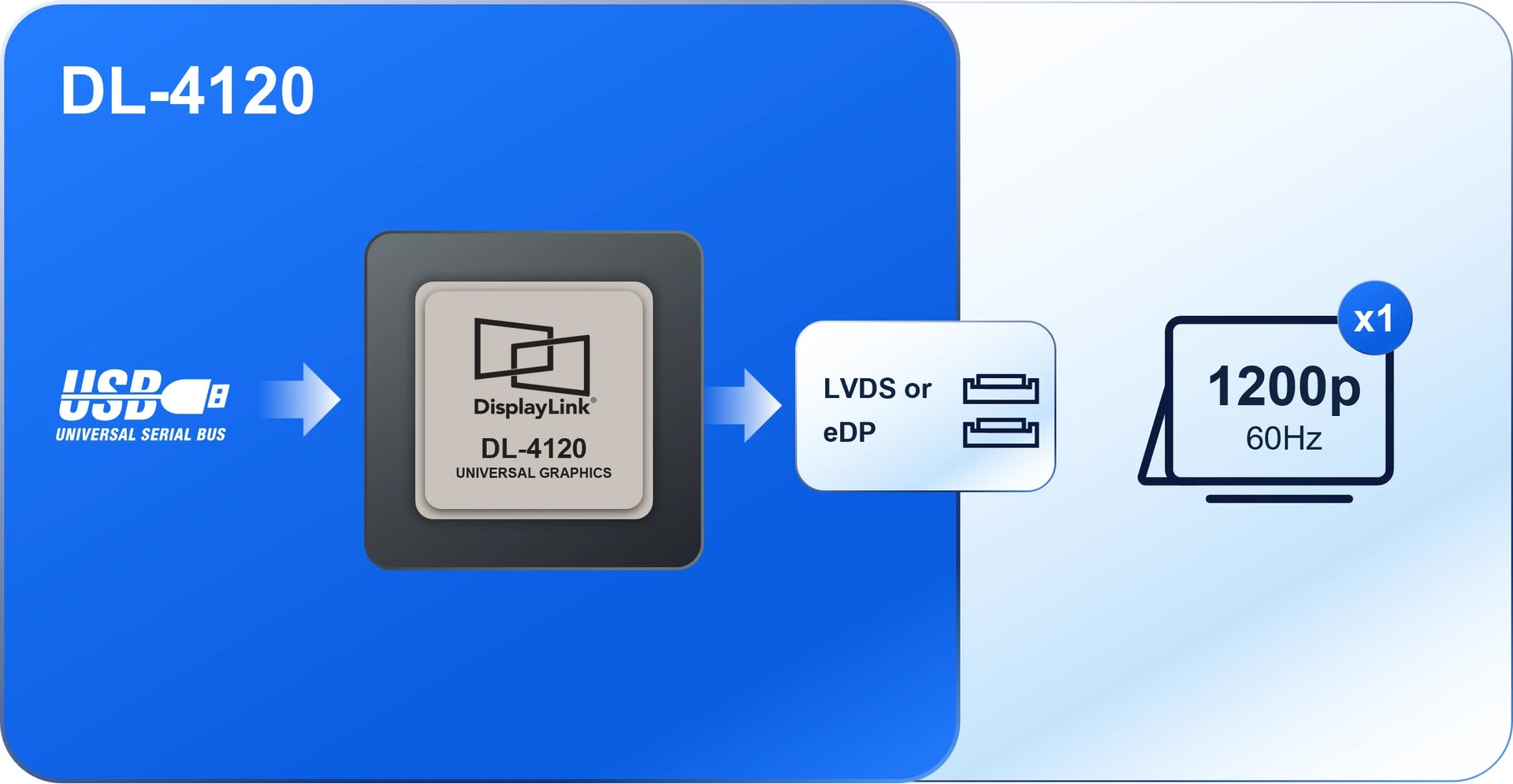

DL-4120
MOZA MGX1000 Instrument Panel — unlocking a fully integrated glass cockpit experience.
Learn more| Product P/N | Application | Input | Video Outputs | Integrated Features | Support | Max Resolution | Ethernet | Audio |
|---|---|---|---|---|---|---|---|---|
| DL-4120 | Embedded Display Kiosk Signage | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 1200p | n/a | n/a |
| DL-4115 | Embedded Display Kiosk Signage | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 900p | n/a | n/a |
| DL-4110 | Embedded Display Kiosk Signage | USB3 5Gbps | 1 | LVDS DDR-less | eDP | 1x 720p | n/a | n/a |
