Video & Data Connectivity
Overview
Advanced Connectivity ICs
The Synaptics ConnectSmart family delivers high-speed video, audio, and data interface ICs for seamless CPU, GPU, and NPU integration. Designed for enterprise and consumer docks, adapters, and AR/VR bridges, these solutions maximize bandwidth, efficiency, and performance.
DisplayPort Technology Leadership
Synaptics pioneered DisplayPort Multi-Stream Transport (MST) and powers over 90% of enterprise docking stations. Its scalable, standards-based ICs provide superior signal integrity, interoperability, and long-term reliability.
AI-Enabled Docking Innovation
With integrated OSD, diagnostics, and telemetry, ConnectSmart ICs simplify IoT dock deployment. Combined with Synaptics’ ASTRA™ NPU and Veros™ Wi-Fi, they enable the next generation of intelligent, AI-driven connectivity solutions.
DisplayPort 1.4 / 2.1 products with up to Quad 4K or Dual 8K displays, delivering 10–12bpp HDR video and Variable Refresh Rate for immersive gaming. Seamlessly compatible with Thunderbolt, USB4, and DP Alt-Mode devices, as well as leading processors from Intel, AMD, NVIDIA, and Qualcomm
| Product P/N | Target Applications | Max DP Input | Video Output Ports | Max Configurable DP Outputs | Max configurable HDMI Outputs | On Screen Display (OSD) | Max Display Resolution | Diagram |
|---|---|---|---|---|---|---|---|---|
| VMM9430-S |
| DP2.1 UHBR20 | 4 | 3x DP2.1 (UHBR20) | 4x HDMI2.1 | Yes | 4x 4K144 / 2x 8K60 | |
| VMM9330-S |
| DP2.1 UHBR20 | 3 | 3x DP2.1 (UHBR20) | 3x HDMI2.1 | Yes | 3x 4K144 / 2x 8K60 | |
| VMM9320-S |
| DP2.1 UHBR20 | 3 | 2x DP2.1 (UHBR20) | 3x HDMI2.1 | Yes | 3x 4K144 / 2x 8K60 | |
| VMR9330 |
| DP2.1 UHBR10 | 3 | 3x DP1.4 (HBR3) | 3x HDMI2.1 | No | 3x 4K144 / 2x 8K60 | |
| VMR9220 |
| DP2.1 UHBR10 | 2 | 2x DP1.4 (HBR3) | 2x HDMI2.1 | No | 2x 4K144 / 2x 8K60 | |
| VMM8430-S |

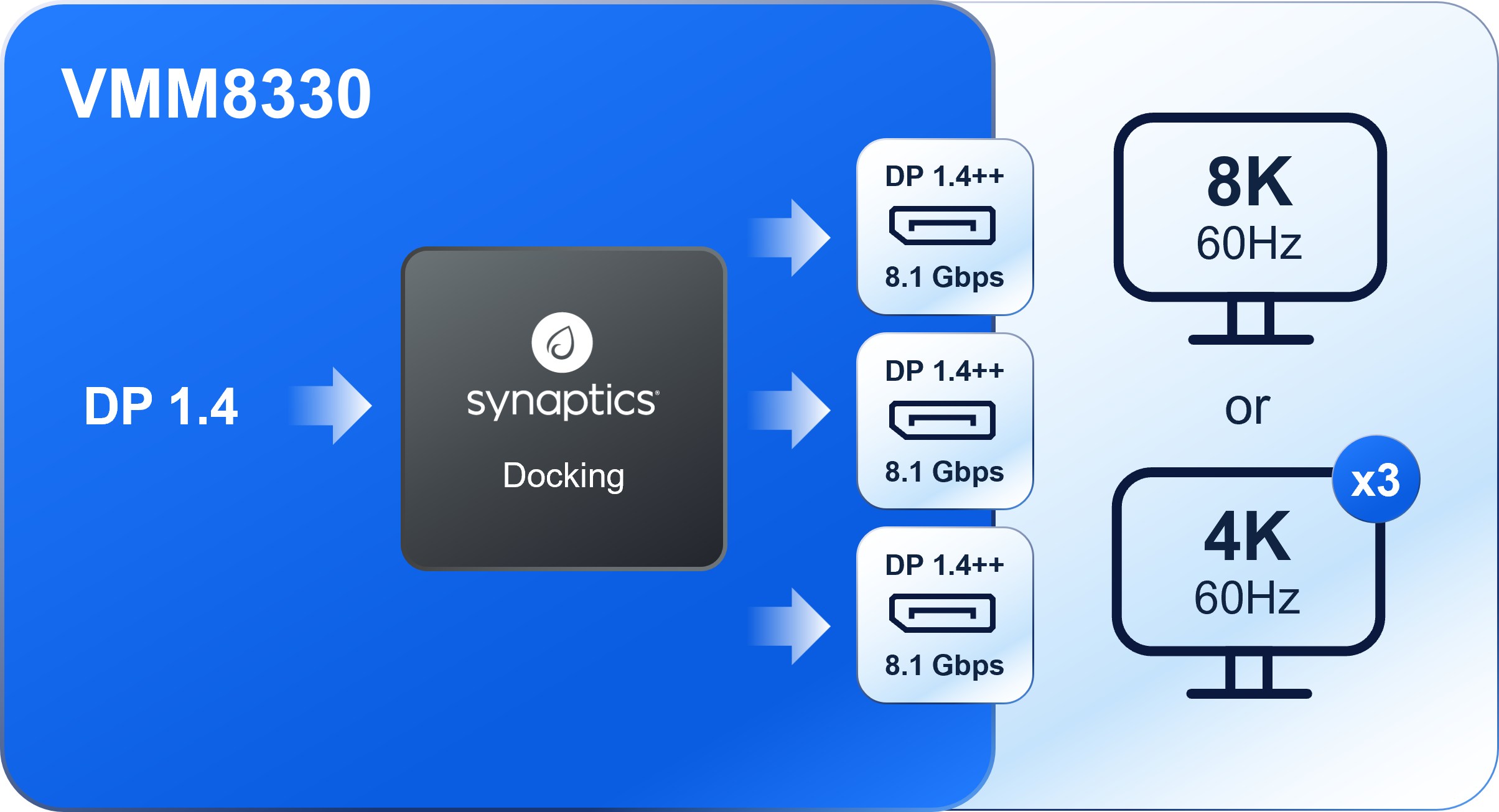

| DP1.4 HBR3 | 4 | 3x DP1.4 (HBR3) | 4x HDMI2.1 | Yes | 4x 4K60 / 1x 8K60 | |
| VMM8330-S |
| DP1.4 HBR3 | 3 | 3x DP1.4 (HBR3) | 3x HDMI2.1 | Yes | 3x 4K60 / 1x 8K60 | |
| VMM8320-S |
| DP1.4 HBR3 | 3 | 2x DP1.4 (HBR3) | 3x HDMI2.1 | Yes | 3x 4K60 / 1x 8K60 | |
| VMM5330 |
| DP1.4 HBR3 | 3 | 3x DP1.4 (HBR3) | 3x HDMI2.0 | No | 3x 4K60 | |
| VMM5320 |
| DP1.4 HBR3 | 3 | 2x DP1.4 (HBR3) | 3x HDMI2.0 | No | 3x 4K60 | |
| VMM5310 |
| DP1.4 HBR3 | 3 | 1x DP1.4 (HBR3) | 3x HDMI2.0 | No | 3x 4K60 |
2-Port Multi-Stream hub designed for adapters and dongles, supporting multiple video streams from the host. Optimized for DisplayPort or USB-C applications, with 2- or 4-lane video over USB-C. Provides DisplayPort 1.4 or HDMI 2.1 outputs, enabling up to Dual 8K@30 or Dual 4K@60 displays
| Product P/N | Target Applications | Max DP Input | Video Output Ports | Max Configurable DP outputs | Max configurable HDMI Outputs | Max Display Resolution | Features | Diagram |
|---|---|---|---|---|---|---|---|---|
| VMM6210 |
| DP1.4 HBR3 | 2 | 1x DP1.4 (HBR3) |
| 2x 8K30 | HDR10+ Adaptive Sync VRR HDCP1.4/2.3 | |
| VMM6200 |
| DP1.4 HBR3 | 2 | None | 2x HDMI2.0 | 2x 4K60 | HDR10+ Adaptive Sync VRR HDCP1.4/2.3 | |
| VMM5220 |
| DP1.4 HBR3 | 2 | 2x DP1.4 (HBR3) | None | 2x 4K60 | HDR10 HDCP1.4/2.3 |
Enhance video performance across desktop PCs, notebooks, adapters, and game consoles with support for HDMI 2.1—delivering up to 8K and 10K resolution, stunning 4K at 120/144Hz with HDR, and smooth gameplay through Variable Refresh Rate (VRR)
| Product P/N | Target Applications | Max DP Input | Video Output Ports | HDMI Outputs | Max Display Resolution | Features | Diagram |
|---|---|---|---|---|---|---|---|
| VMM7100 |
| DP1.4 HBR3 | 1 | 1x HDMI2.1 | 1x 8K60 | HDR10+ Adaptive Sync VRR HDCP1.4/2.3 | |
| VMR7100 |
| DP1.4 HBR3 | 1 | 1x HDMI2.0 | 1x 4K60 | HDR10+ Adaptive Sync VRR HDCP1.4/2.3 |
Low power bridge solution for AR, VR, and MR applications combining DisplayPort 1.4 connectivity with MIPI CPHY/DPHY dual displays supporting up to 3Kx3K at 120Hz, 1000ppi with Fovea rendering. Features DSC, FEC, HDCP and compatibility with LCD, uLED, uOLED, and LCoS displays.
| Product P/N | Target Applications | Max DP Input | Video Output Ports | Configurable MIPI CPHY / DPHY Outputs | MST /SST | Max Display Resolution | Features | Diagram |
|---|---|---|---|---|---|---|---|---|
| VXR8300 |
| DP1.4 HBR3 | 2 | 2x 3-C / 4-D PHY | SST | Dual 4Kx4K72 | HDR10+ Adaptive Sync HDCP1.4/2.3 ASSR | |
| VXR7200 |
| DP1.4 HBR3 | 2 | 2x 6-C / 8-D PHY OR 4x 3-C / 4-D PHY | MST & SST | Dual 4Kx4K90 | HDR10 Adaptive Sync HDCP1.4/2.3 ASSR |
Applications that fit your needs
Workplace or Home Office Docking
Design enterprise or consumer docking stations with Synaptics ConnectSmart MST—trusted by Dell, HP, Lenovo, and other tier-1 OEMs. Capabilities include built-in OSD and support for up to DP 2.1 UHBR20 / HDMI 2.1, driving up to 4× 4K144 or 2× 8K60 displays. Partner with Synaptics for your next Thunderbolt™ 4/5, USB4®, or Alt-Mode docking station development.
On the Go Productivity
Perfect for your mobile customers; Synaptics ConnectSmart enabled multi-monitor hubs ensure multiple monitor productivity on the go. Support for up to 2x 8K30 displays, HDR10+, Adaptive Sync & HDCP has you covered.
Add-on graphics
Created for system integration or adapters; Synaptics ConnectSmart enabled PCONs deliver up to HDMI 2.1 while supporting Variable Refresh Rate (VRR) support for smooth graphics. Build into your next motherboard, console or adapter.
PCVR connectivity
Provide next-level immersion by adding Synaptics ConnectSmart VR Bridge to your HMD and bringing the best of PC graphics power to your virtual experience.
