Astra™ SL2610 Product Line
Product Line Overview
The new Synaptics Astra SL2610 product line delivers exceptional performance and power efficiency for multimodal compute across IoT devices ranging from smart home appliances, wearables, and smart retail, to robotics, charging infrastructure, and industrial systems. With five pin compatible processor families, it is built for a wide range of AI-native compute solutions from battery-powered and passively cooled devices to high-performance industrial vision systems.
Experience the groundbreaking Synaptics Torq™ Edge AI platform – with the transformer – and CNN capable Torq T1 NPU together with the industry’s first production implementation of the Coral NPU from Google. This integrated architecture allows for dynamic support of new operators, future-proofing Edge AI IoT system design. Torq advances true AI developer freedom by means of a disruptive, an end-to-end compiler and runtime based on the open-source IREE/MLIR projects, supporting both standard and emerging model formats such as LiteRT, PyTorch, ONNX and JAX.
Built on a high-efficiency architecture powered by Arm® Cortex®-A55, Cortex-M52, and the Mali™ 3D GPU, the SL2610 processors advance the state of silicon, device, and system-level security, with features ranging from immutable root of trust to application crypto processing – making it well-positioned to address a fast-evolving threat landscape at the IoT AI device edge.
Explore Torq Explore Coral NPU
Google Coral NPU: A Full-Stack Platform for Edge AI
Experience True Developer Freedom with the Synaptics Torq IoT Edge AI platform
Trusted by Industry Leaders
-
“Google Research is excited to collaborate with Synaptics on Edge AI. By integrating our Coral NPU ML accelerator, we are helping create an ecosystem that will simplify development and unlock powerful new experiences. This partnership is a catalyst to move the industry forward and help make devices even more useful.”
Yossi MatiasGoogle Vice President and Head of Google Research -
“As Edge AI adoption expands, multimodal capabilities are emerging as a way to enable more context-aware user experiences. Companies such as Synaptics, in collaboration with Google, are contributing to the development of this landscape. Open-source technologies will be an important factor in accelerating innovation and adoption.”
Nina TurnerResearch Director, Enabling Technologies and Semiconductors -
“We are collaborating with Synaptics due to their heritage in audio processing, multimodal AI, wireless connectivity, and low-power solutions. Their joint development approach, global footprint, and supply resiliency made them a technology partner of choice”
Kurt PrestonVice President, Global Operations -
“For more than a decade, Cisco has partnered with Synaptics on solutions for enterprise conferencing and networked audio systems, relying on their advanced processors and connectivity technology. We are encouraged by their dedication to enriching communication experiences using AI-capable SoCs and look forward to our continued engagement as a trusted partner.”
John ReederVice President

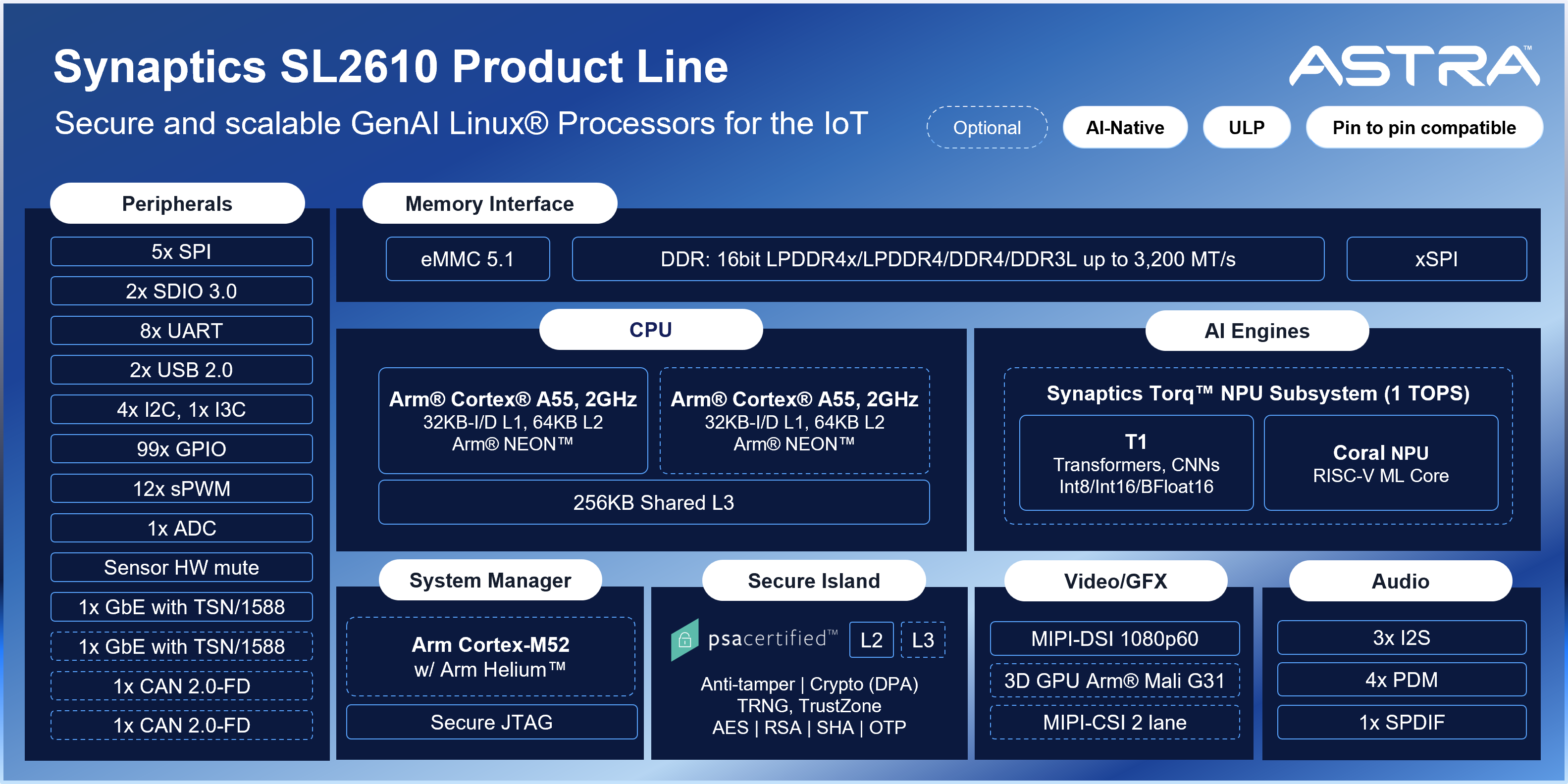

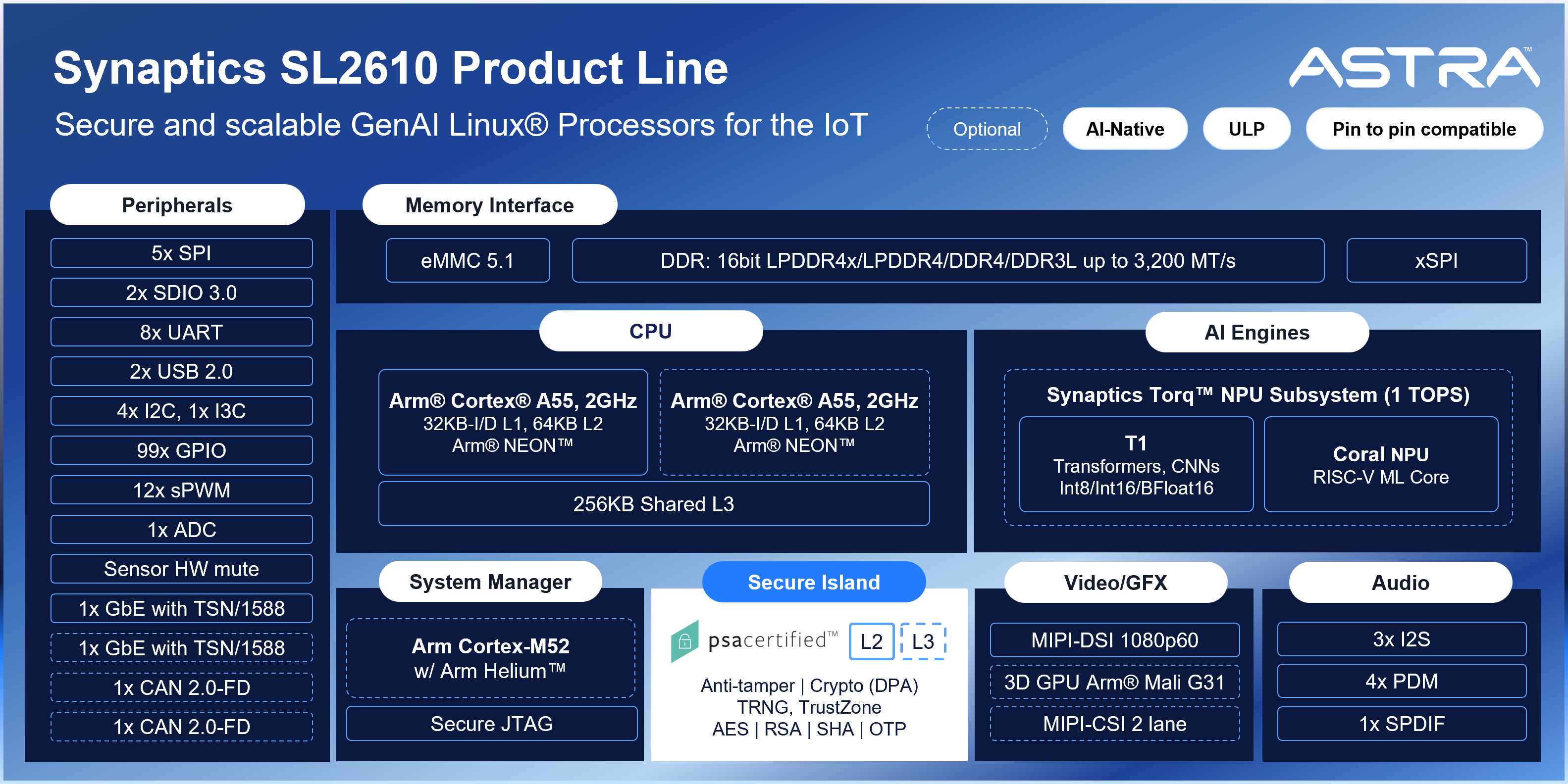

Block Diagram and Features
- SL2610 Key Features

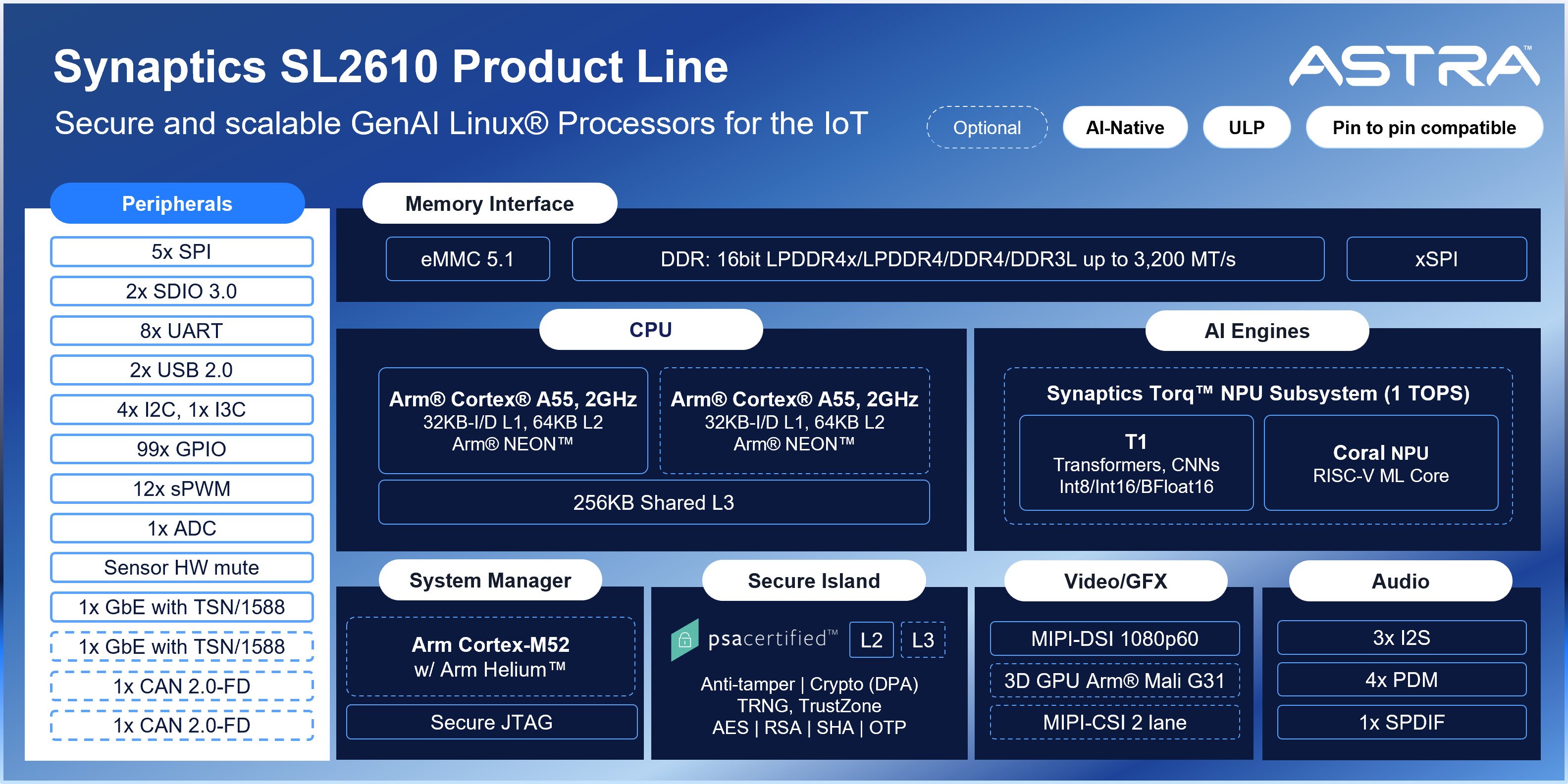

- Peripherals

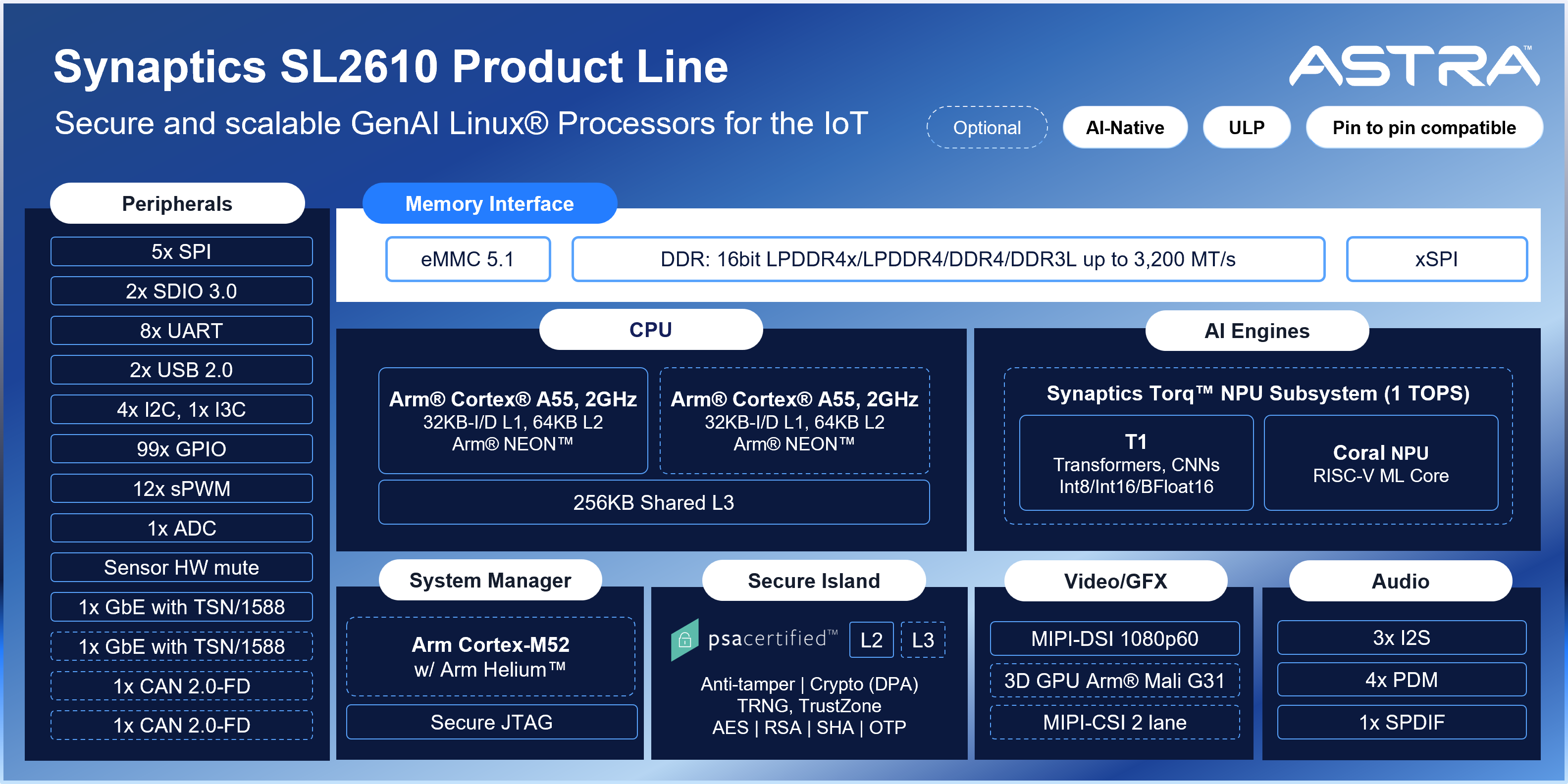

- Memory Interface
- CPU

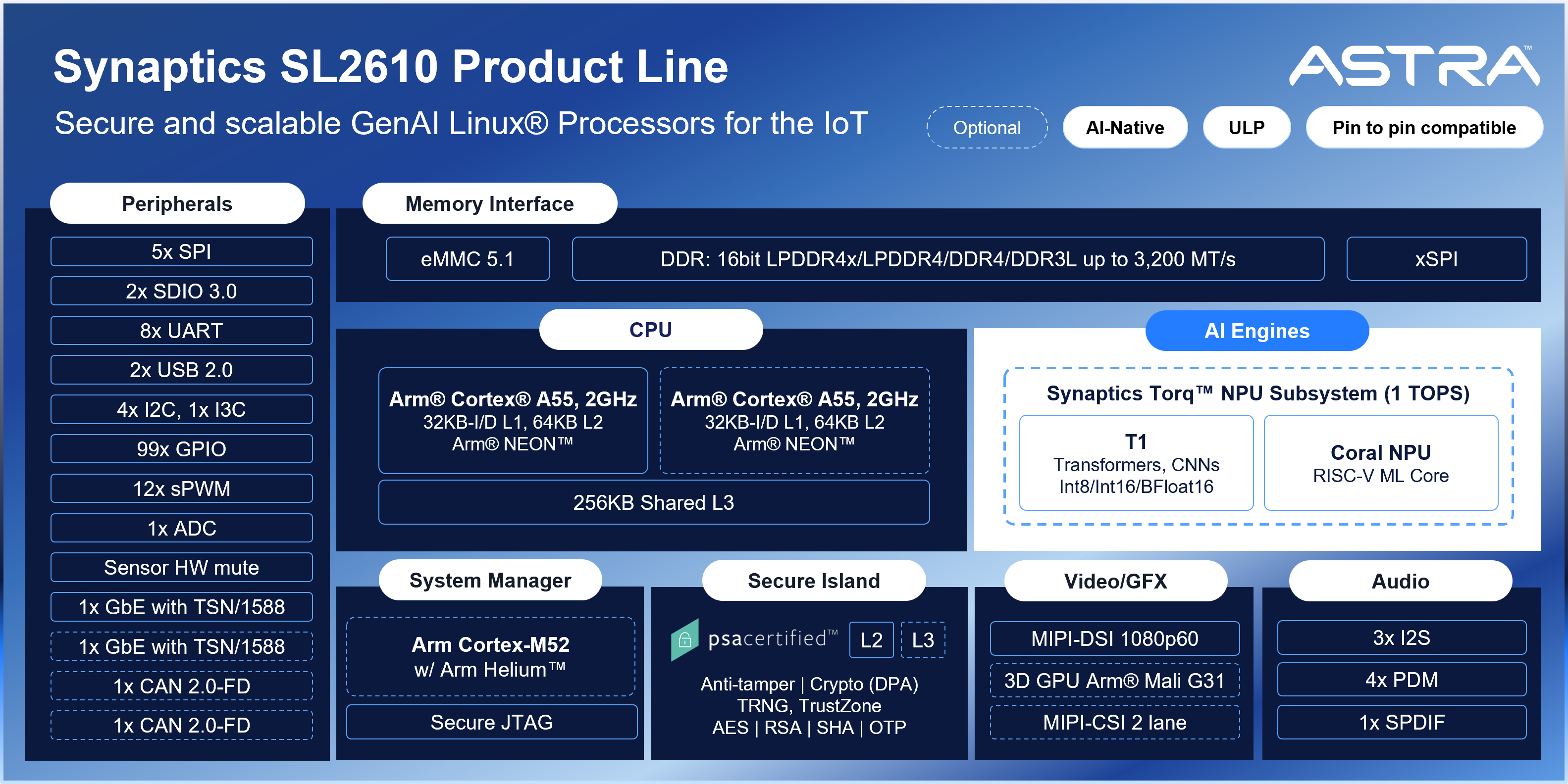

- AI Engines
- System Manager
- Secure Island

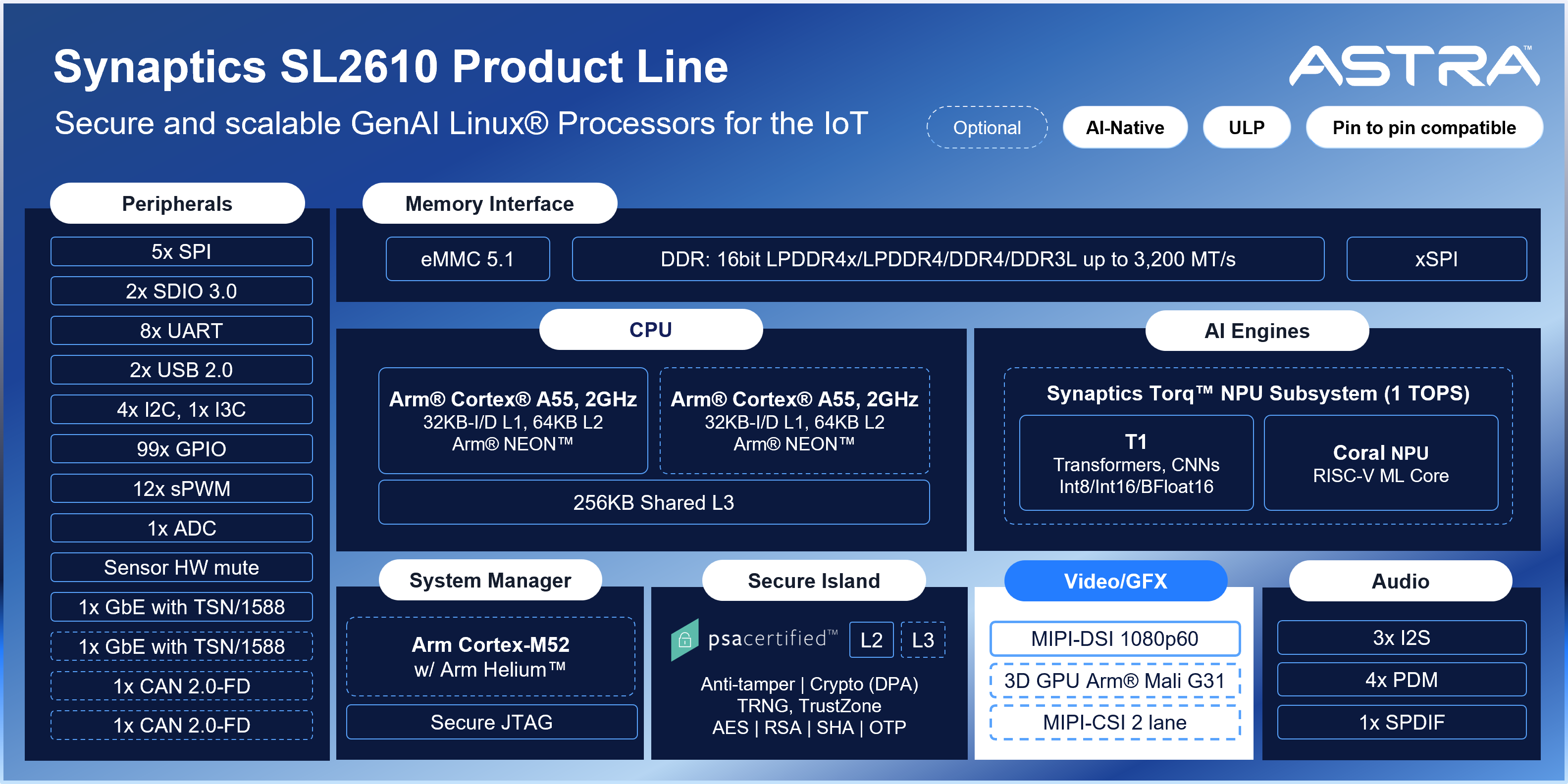

- Video/GFX

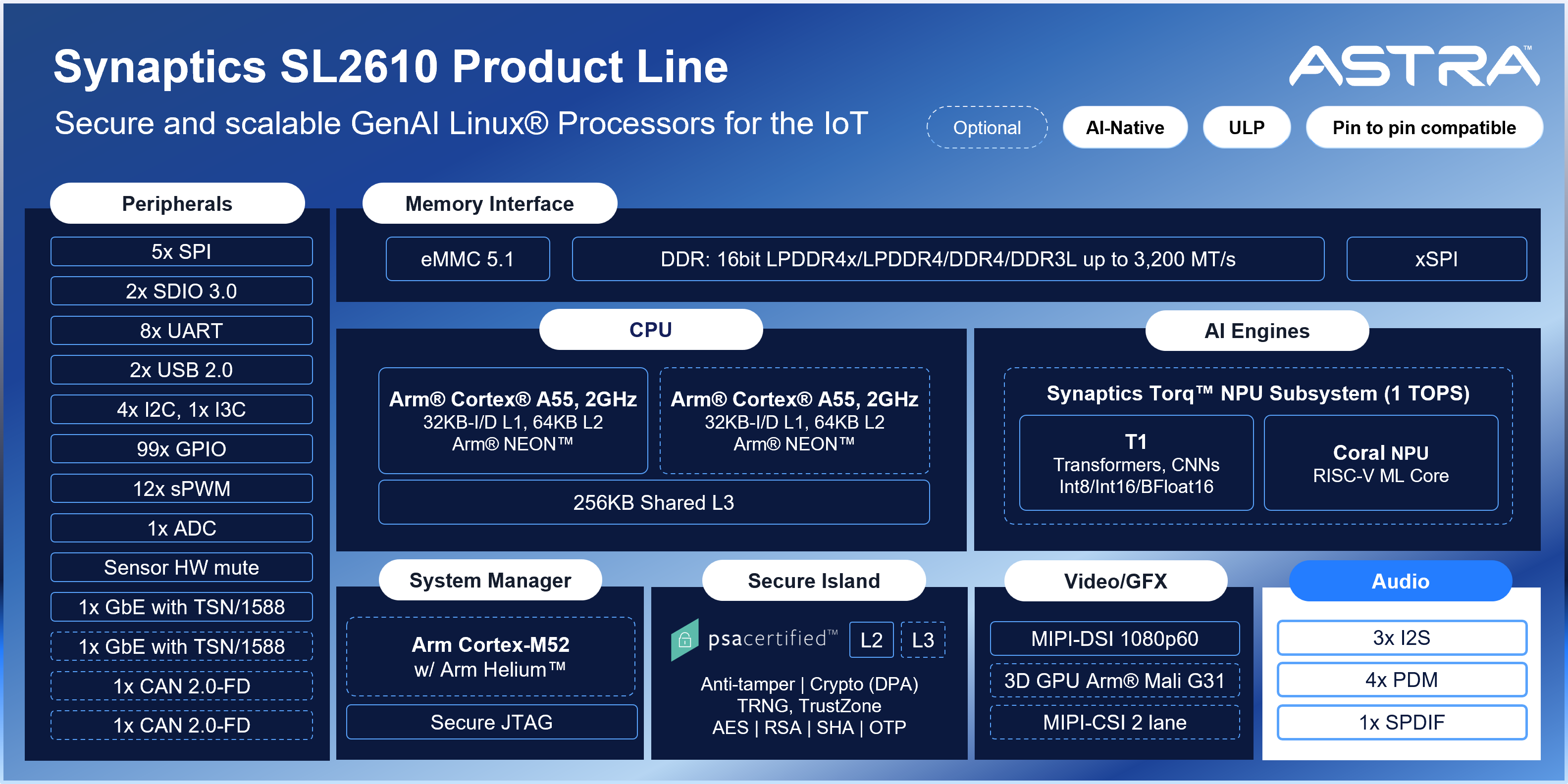

- Audio
Features
Compute & AI
- Single and dual core Arm Cortex-A55 SoC domain
- Arm Cortex-M52 with Helium System Manager domain
- 1 TOPS Transformer-capable NPU
- Coral NPU (RISC-V ML Core)
Graphics, Audio & Multimedia
- 3D GPU with Arm Mali-G31
- MIPI-DSI & CSI with 2160p30 and HDR
- 3x TDM/I2S with 16 channels, support for 8 digital mics
- Hardware audio and camera mute
Connectivity & I/O
- 2 USB-2.0, 2 SDIO 3.0, 4 TWSI I2C, 8 UART
- 5 SPI, 2 xSPI, 99 GPIO
- 12-bit ADC and up to 12 smart PWM modules in SM domain
Security, Memory & Networking
- DDR4/LPDDR4/DDR3L with inline ECC
- PSA certified Level 3 (RoT), Level 2 (Product)
- Secure boot, TRNG, RSA, AWS, SHA, ECC, HASH
- Single and Dual GbE RGMII with Wake-on-LAN
- 1588 PTP and TSN, 802.1 p/q VLAN tagging
Astra Machina SL2610 Dev Kit
The Synaptics Astra Machina SL2600 Series development kit enables easy and rapid prototyping of multimodal AI-native IoT applications. A flexible design approach supports a core compute module, an I/O base board, daughter cards for integrated Wi-Fi / Bluetooth connectivity, debug, and programmable I/O. The evaluation system supports the Synaptics SL2619 SoC family that delivers unprecedented levels of price performance for the IoT, and enabled via an open, unified software experience built on Yocto Linux. The Machina SL2600 Series is powered by the open-source Synaptics Torq™ Edge AI platform, leveraging the Coral Open NPU subsystem.
Download Product Brief Register Your Interest
Define Your AI Journey
On-Device AI in Minutes
Get started today with AI models pre-optimized for Synaptics Astra Processors, and discover the possibilities. Optimize PyTorch, ONNX or TensorFlow Lite models for on-device AI accelerators with best-in-class embedded AI tools.
Designed With Usability in Mind
Astra Machina is the industry’s premier IoT system for compute, edge AI technology and connectivity built on open software. Modular developer kit for Astra SL-Series of high-performance IoT processors with integrated Wireless Connectivity from Synaptics.
