DRIVING THE

HUMAN

INTERFACE

Synaptics ClearView Display Driver

Synaptics’ ultra-high resolution state-of-the-art DDIC technology with SafeView provides a beautiful display in your vehicle's dashboard whether in full sunlight or cruising at night.

Black
White
Right side of dot
35
37
White

Synaptics Touch and Display Driver Integration

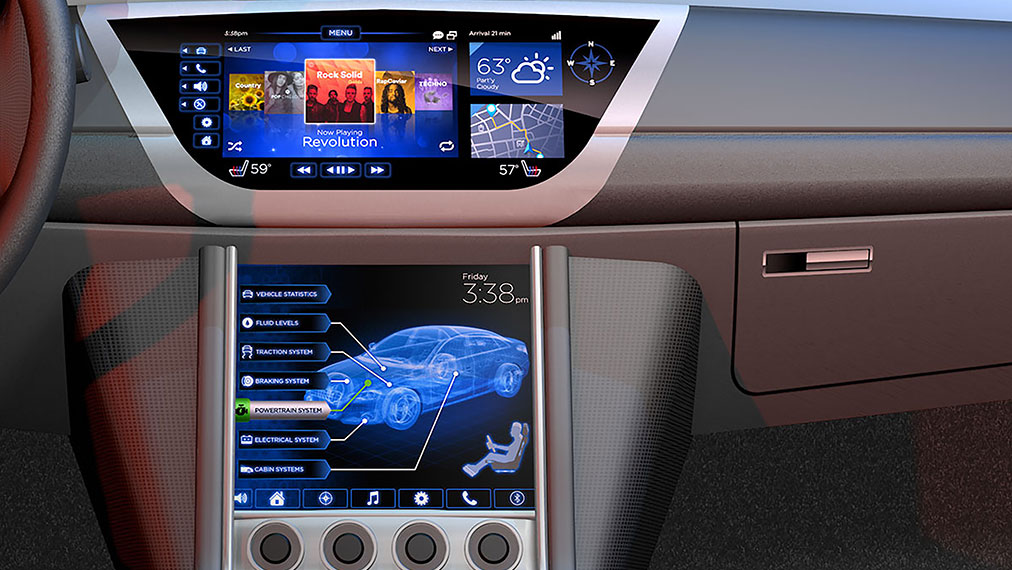

Synaptics TDDI solution with SafeView provides responsive high resolution touch screens that is built for industrial design flexibility.

Black
White
Right side of dot
70
55
White

Synaptics ClearView Display Driver

Synaptics’ state-of-the-art DDIC technology with SafeView brings high resolution and HDR imaging to your vehicle's displays.

Black
White
Right side of dot
47
53
White

Synaptics ClearPad Touch Controller

Synaptics’ touch controllers enable multi-finger gestures and force sensing technology that simultaneously enhances usability and safety.

Black
White
Left side of dot
41
58
White

Synaptics ClearView Display Driver

Synaptics provides added safety with state-of-the-art SafeView display technology for enhanced visibility with contrast correction to enhance low-light images.

Black
White
Left side of dot
16
80
White

Synaptics ClearPad and TouchPad Controllers

Synaptics gives drivers added control -- on the steering wheel and other driver-side locations -- through touch and force sensing through glass, plastic, leather and other materials.

Black
White
Right side of dot
52
44
White

Synaptics in Automotive

Synaptics' display processing, integrated touch and display controllers, touch sense, and display driver technologies provide an unmatched user interface. Widely deployed by the world's leading automotive manufacturers, Synaptics' solutions are rigorously tested to meet the automotive industry's demanding environmental and reliability standards, are proven in high-volume production, and are tailored for clarity, safety, and an intuitive user experience.

Synaptics SmartBridge SB7900

Synaptics SmartBridge

Designed for Electrification

  • Ultra low power
  • High contrast
  • Improved safety
  • Smaller footprint

Easy to Implement

  • Reduced complexity
  • Comprehensive solution
  • Functional safety support
  • Lower system cost


Synaptics TDDI solution combines the features found in both our display drivers and touch controllers along with the reliability demanded by the automotive industry.

Features:

  • A single die combining touch and display that results in greater manufacturing efficiency and brighter screens
  • Support for display screens up to 17 inches
  • Resolutions up to ultra-high-definition (UHD) displays
  • Safety features for OEMs such as Automotive Safety Integrity Level (ASIL) compliance
  • AEC-Q100 Grade 2 and IAFT 16949 compliant
  • Includes SafeViewTM technology:
    • Sunlight readability enhancement for improved image quality under direct sunlight
    • Contrast optimization of light and dark image areas simultaneously
    • Support for one-billion colors -- an industry first!
    • Touch and display synchronization, enabling advanced display noise management and in-cell touch sensing
    • Touch and display color-matching across multiple screens even from different display manufacturers



ClearPad and TouchPad touch-interface solutions include advanced features such as ClearForceTM, sensing through thick gloves, proximity, moisture immunity, and support for curved/thick surface materials.

Features:

  • Support for touch screens and touchpads up to 18 inches
  • Synaptics’ proprietary force-sensing technology enables more precise control with an intuitive user experience
  • Customization to meet the most challenging size, aspect ratio, performance, and integration requirements
  • Accuracy and responsiveness through advanced algorithms and high sensing node counts
  • In-system programmability, enabling firmware updates throughout the development lifecycle
  • Synaptics design and test tool suites, providing best-in-class design flexibility
  • Proven technology: Synaptics capacitive touch sensing technology is already used in over one-billion devices



Synaptics ClearView display drivers support resolutions from WVGA (800×480) to FHD (1080p) and beyond, and enable a broad range of applications, including clusters, infotainment displays, and heads-up displays. The display drivers' touch-controller synchronization enables high-resolution yet cost-effective displays.

Features:

  • Advanced image processing for enhanced brightness
  • Low power consumption, minimizing heat while maintaining a vibrant image
  • Image Studio tools that enable adjustment of gamma and color to optimize image quality
  • SafeViewTM technology provides:
    • Sunlight readability enhancement for improved image quality under direct sunlight
    • Contrast optimization of light and dark image areas simultaneously
    • Support for one-billion colors -- an industry first!
    • Touch and display synchronization, enabling advanced display noise management and in-cell touch sensing
    • Touch and display color-matching across multiple screens even from different display manufacturers



Synaptics SafeSense, Design Studio and Image Studio streamline the touchscreen design process, while reducing total design cost and accelerating the time to market. The tool suites assist designers in creating optimal products that are tightly aligned with target design and performance specifications. They work seamlessly with multiple display configurations and stack-ups, including discrete sensor, on-glass-sensor, on-cell, and in-cell solutions.

SafeSense makes design simulation easy.  It comprehends all factors that can affect touchscreen performance, such as the sensor pattern, substrate material, size, structure, stack-up, and front-lens thickness. By simulating a design first, time and resource expenditures are minimized.

Design Studio includes tuning and configuration wizards, production test tools, and diagnostics tools that configure and test chips and modules built using Synaptics capacitive sensing technology. Choice of materials, thickness of glass, and system architecture impact touch performance. Synaptics Design Studio allows designers to set firmware parameters (such as baseline capacitance and operating frequency) to optimize the touch performance of a particular touchscreen design. The result is excellent responsiveness, sensitivity and finger-tracking. The tools also allow the designer to enable and configure advanced features such as side touch, moisture tolerance, and gesture recognition.

Image Studio features wizards for tuning and configuration, as well as diagnostics tools that configure and test the modules based on Synaptics display driver ICs. Synaptics Image Studio allows designers to adjust color settings -- gamma, warmth, white point, color targets, and backlight intensity --  to optimize the display performance for a particular design, resulting in vibrant images with excellent color and low power consumption.



Because automotive applications require that components perform under extreme operating conditions, Synaptics automotive products adhere to the company's zero-defect quality commitment and are designed to meet strict industry standards, including:

  • AEC-Q100 component qualification
  • Quality management system (QMS) meeting ISO 9001 and IATF 16949 standards
  • Automotive SPICE software process improvement
  • Production Part Approval Process (PPAP)
  • ISO 11452 and CISPR25 compliant
